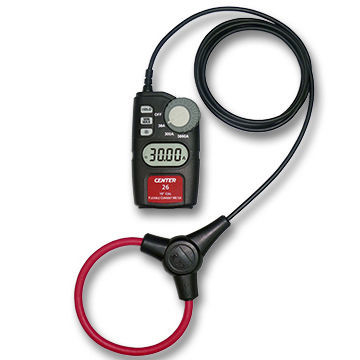

Digital clamp meter 26portable600 V3000 A
Add to favorites
Compare this product
Characteristics
- Display
- digital
- Form
- portable
- Max voltage
- 600 V
- Max current
- 3000 A
- Safety rating
- cat IV
- Additional features
- frequency
- Other characteristics
- true RMS
- Max DC current
30 A, 300 A, 3,000 A
- Max AC current
30 A, 300 A
- Max frequency measure
Max.: 500 Hz
Min.: 45 Hz
- Max AC current resolution
1 mA, 10 mA, 100 mA
- AC current precision
3 %
- Length
120 mm
(4.72 in)- Width
70 mm
(2.76 in)- Height
26 mm
(1.02 in)- Weight
286 g
(10.09 oz)
Description
• Measurement Ranges: 30A/300A/3000A AC
• Output Resolution (LCD Display): 0.01A/0.1A/1A
• 8.5mm coil diameter allows measurement in tight spaces (Double insulated)
• 10” flexible sensor fit around conductors up to 3.2”in diameter
• 18” flexible sensor fit around conductors up to 5.8”in diameter
• TRMS Reading.
Position Sensitivity: ± 3%
Display: 4 digital Liquid display, Maximum reading 3150
Sampling Rate: 2 times/sec
Battery: 1.5V, size AAA battery x 2
Probe Cable Length: 10"_254mm ; 18"_458mm.
