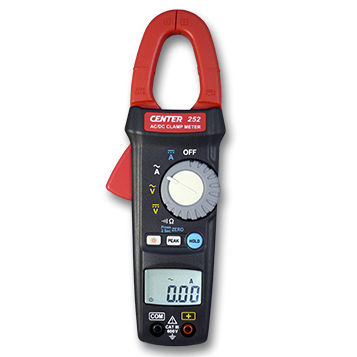

Digital clamp multimeter 252 portable600 V600 A
Add to favorites
Compare this product
Characteristics
- Display
- digital
- Form
- portable
- Max voltage
- 600 V
- Max current
- 600 A
- Safety rating
- cat III
- Additional features
- frequency
- Other characteristics
- true RMS, autorange
- Max DC voltage
600 V
- Max AC voltage
600 V
- Max DC current
60 A, 600 A
- Max AC current
60 A, 600 A
- Max resistance measure
Max.: 6,000 Ohm
Min.: 600 Ohm
- Max capacity measure
Max.: 4,000 µF
Min.: 400 µF
- Max frequency measure
Max.: 100,000 Hz
Min.: 660 Hz
- Max DC voltage resolution
100 mV
- Max AC voltage resolution
100 mV
- Max DC current resolution
10 mA, 100 mA
- Max AC current resolution
10 mA, 100 mA
- Max resistance resolution
Max.: 1 Ohm
Min.: 0.1 Ohm
- DC voltage precision
1 %
- AC voltage precision
1.2 %
- DC current precision
2 %
- AC current precision
1 %
- Resistance precision
1 %
- Process temperature
Max.: 600 °C
(1,112 °F)Min.: -50 °C
(-58 °F)- Length
209 mm
(8.23 in)- Width
74 mm
(2.91 in)- Height
36 mm
(1.42 in)- Weight
255 g
(8.99 oz)
Description
• With 0.01A High Resolution
• Measuring Frequency From Current Clamp & Test Terminal
• 1ms Peak Hold Function
• Back Light Function
• Data Hold Function
• Zero Function
• Auto Power Off
• Autoranging
Display: 4 digital Liquid display, Maximum reading 6600
Sampling Rate: 3 times/sec
Battery: 1.5V size AAA battery x 2
Maximum Jaw Opening: ø 25 mm.
