Schottky diode CMIDSH1-3surface-mountrectifierlow forward voltage drop
Add to favorites
Compare this product
Characteristics
- Technology
- Schottky
- Mounting
- surface-mount
- Function
- rectifier
- Electrical characteristics
- low forward voltage drop
- Technical characteristics
- silicon
- Reverse voltage
30 V
Description

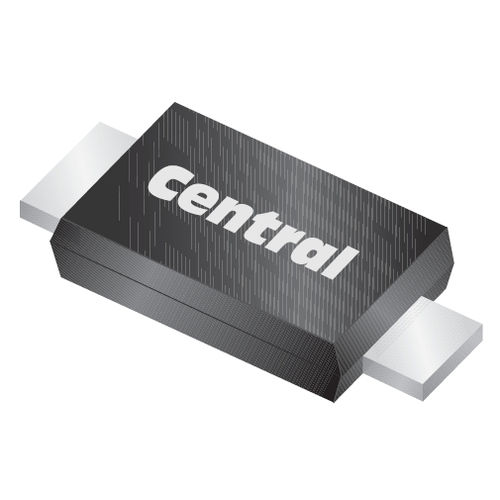

The CENTRAL SEMICONDUCTOR CMIDSH1-3, CMIDSH1-4, and CMIDSH1-6 are silicon Schottky
rectifiers packaged in a space saving flat lead, low profile SOD-323FL case. These devices have been designed for applications requiring a low forward voltage drop.
MARKING CODES: CMIDSH1-3: C13
CMIDSH1-4: C14
CMIDSH1-6: C16
FEATURES:
• Low package profile
• High reverse voltage capability
• Low leakage current
APPLICATIONS:
• DC-DC converters
• Voltage clamping
• Reverse polarity protection
• General pupose rectification
