NPN transistor CMLT3820

powersmall-signalsilicon

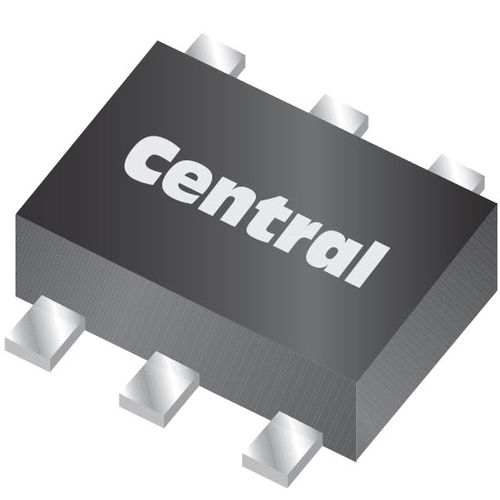

The CENTRAL SEMICONDUCTOR CMLT3820G is a very low VCE(SAT) NPN Transistor, designed for applications where small size and efficiency are the prime requirements. Packaged in a space saving SOT-563 surface mount package, this component provides performance characteristics suitable for the most demanding size constrained applications. MARKING CODE: 38G APPLICATIONS: • DC/DC Converters • Voltage Clamping • Protection Circuits • Battery powered Cell Phones, Pagers, Digital Cameras, PDAs, Laptops, etc. FEATURES: • Device is Halogen Free by design • High Current (IC=1.0A) • VCE(SAT)=0.28V MAX @ IC=1.0A • SOT563 surface mount package • Complementary PNP device CMLT7820G
