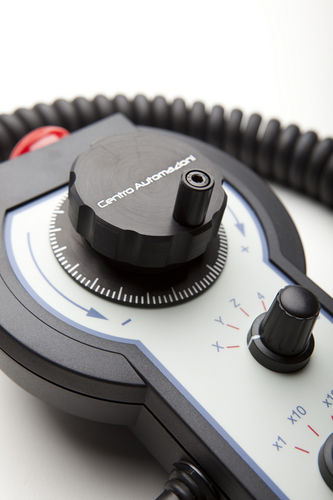

Operating electronic handwheel CA VDC021300

controlfor CNC machinesplastic

The electronic handwheel is made of incremental encoders by particular execution and manual usage. Specifically studied as portable auxiliary command with a spiral cord that can be extended up to the length of 2 meters, so that it can be easily positioned on numerically-controlled machines. Every turn of the knob (360) supplies 100 pulses per revolution. The graduated knob, with a ridged handgrip leaflet has a mechanism that allows each division to manually identify the number of the generated impulses. The ratchet allows a fast rotation, supports the layout of the step by step and the multiple movements. 6-Handwheel command - Pass selector x1 x10 x100 - 100 impulse turn - Spiraled cable extension L2000 - Exit connector MIL 26P - 2 enable contact - 2 emergency contact
