Ball valve pneumatically-operatedflow controlanodized aluminum
Add to favorites
Compare this product
Characteristics
- Type
- ball
- Operation
- pneumatically-operated
- Function
- flow control
- Body
- compact, PVC, anodized aluminum, NAMUR
- Applications
- for industrial applications
- Number of channels
- 2-way
- DN
Min.: 20 mm
(0.787 in)Max.: 110 mm
(4.331 in)- Pressure
16 bar
(232.1 psi)- Temperature
Min.: 10 °C
(50 °F)Max.: 60 °C
(140 °F)
Description

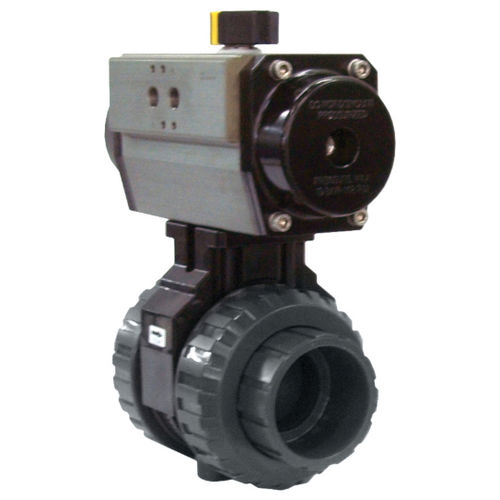

Industrial Series Ball valve with pneumatic actuator made of anodized aluminum Rack and pinnion drive
Fast maneuvering
Valve position visualization
NAMUR connection that allows the assembly of the solenoid valve
Final position regulation in the actuator (+/- 5°)
