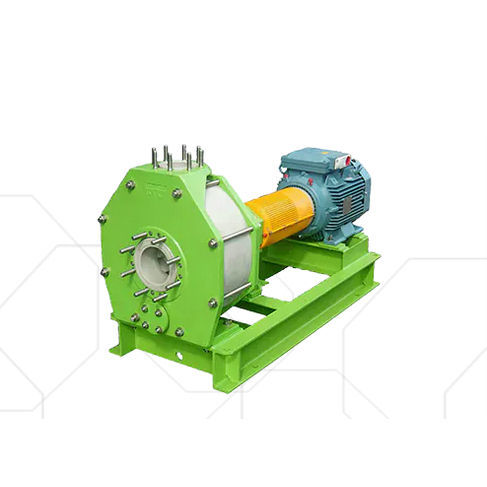

Centrifugal pump PHN

oilwith electric motorstationary

Anti-corrosion standardized horizontal centrifugal pumps type PHN Construction Single-stage horizontal centrifugal pump, single, in conformity to EN 22858 / ISO 2858 standards Sold either with unfitted cam shaft, or fitted with coupling base plate and motor. Our standardized PHN-type horizontal pumps with mechanical seals ensure the delivery of corrosive liquids with a flow rate of up to 700m3/h and a discharge head of 130 meters. Options Intermittent or continuous flushing Specific fur material Oil bearing lubrication Dry running detector ATEX construction according to 94/9/EC ANSI flanges Shaft sealing Single reverse mechanical seal SiC-SiC or SiC-Carbon (spring out of fluid) Double mechanical seal Options Intermittent or continuous flushing. Specific fur materials. Oil bearing lubrication Dry running detector ATEX construction according to 94/9/CE Flanges ANSI Benefits Robustness Insensitive to the direction of motor rotation Easy maintenance (back pull-out) No wheel nose
