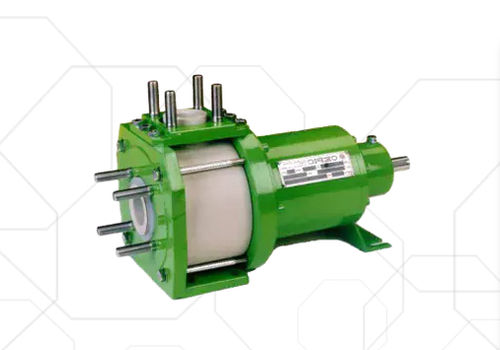

Centrifugal pump PEM

oilelectricstationary

Anti-corrosion magnetic drive pumps type PEM Construction Single-stage horizontal centrifugal PEM pumps. Monobloc version or standardized version. Magnetic coupling with absolute tightness. Samarium cobalt magnets. Our PEM magnetic drive centrifugal pumps ensure the transfer of particularly dangerous corrosive liquids, in complete safety, with a flow rate of up to 150 m3/h and a delivery head of 60 meters. All parts in contact with corrosive liquids are made of materials particularly resistant to corrosion: PPH, PVDF. Our magnets are made from the best materials available to ensure flawless torque transfer whatever the temperature of the product. They are molded in plastic so as not to be in contact with the pumped liquid. Options Standardized version available bare shaft or mounted on frame with coupling and engine Construction for ATEX according to 94/9/EC Shaft sealing Magnetic drive with samarium cobalt magnets Option Standardized version available bare shaft or mounted on frame with coupling and motor ATEX construct Benefits Robustness Maximum safety of use No seal on the rotor
