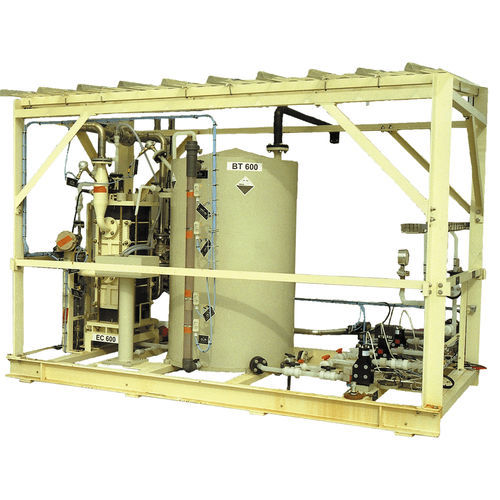

Dilution system

Sulfuric acid dilution skids Function Continuous, secure and economical sulfuric acid (H2SO4) diluted, cold and at a fixed concentration, at from concentrated acid and water. Principle Concentrated acid and water are mixed in a specific device called a dilutor. The reaction is strongly exothermic. The dilute acid produced therefore exits at a temperature high. It is then cooled in a Carbonite® heat exchanger. Our offer Calculation of the heat balance of the specified dilution to define and optimize the components to be retained Diluents in Carbonite® and PTFE Carbonite® heat exchangers Centrifugal, dosing, pneumatic pumps All devices, connecting pipes and frame Coolant management Regulation and safety Assembly and commissioning on site Abilities Centrifugal pumps in Carbonite® or plastic materials from 1m3/h to 700 m3/h Compact Carbonite® heat exchangers from 0.7 m² to 150 m² Standard or custom agitators, vertical or lateral installation Benefits Savings on intermediate storage Lower acid transport costs (only concentrated acid is transported) Rapidly operational dilution skid Diluted acid comes out cold, so immediately usable Flexibility of use in relation to the nominal flow Variation in the concentration and temperature of the dilute acid possible
