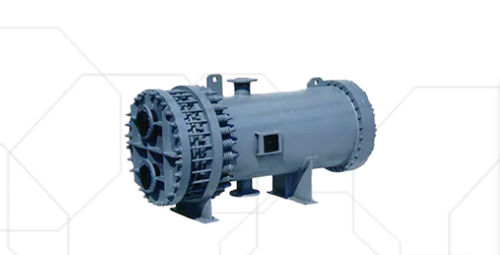

Shell and tube heat exchanger EH

liquid/liquidsteelgraphite

Graphite blocks horizontal heat exchangers type EH Construction Carbonite® cylindrical block heat exchangers. Horizontal mounting. Service enclosure in steel or specific metallurgy. Design and construction in accordance with PED (97/23/CE). Main Options Cable gland construction or expansion compensator. Internal anti-corrosion coating of the service envelope. Exterior insulation of the envelope. Construction for use in ATEX zone. New graphite cylindrical blocks Available in NEH (standard drilling) or NXEH (dense drilling) versions. NEH D and NXEH D versions, in double drilling, of identical design and external dimensions, provide, at a minimum, by doubling the Process drilling, a "Process area/Service area" ratio roughly equal to two. Uses Cooler with liquid Heater with steam Heater with liquid Abilities Number of blocks: 1 Product passage diameter: from 8 to 20 mm Avantages Robustness of Carbonite© blocks Small vertical footprint Unique block therefore limited number of joints Multi-pass possible Natural draining of condensates on the service side
