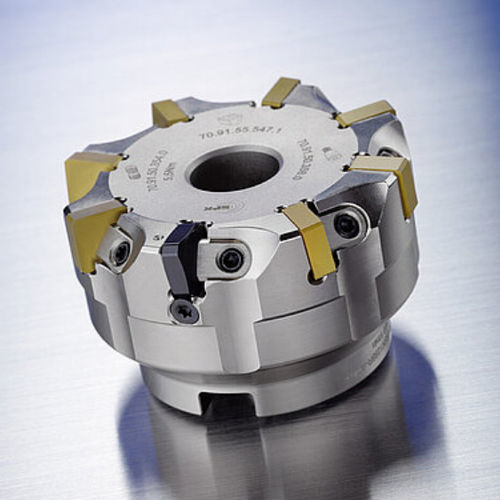

Insert milling cutter PDK-250-18SN1288R-AMfinishingceramicCBN
Add to favorites
Compare this product
Characteristics
- Construction
- insert
- Type
- finishing
- Material
- ceramic, CBN
- Other characteristics
- ISO, cutting
- Diameter
Max.: 250 mm
(9.84 in)Min.: 63 mm
(2.48 in)- Length
40 mm, 50 mm, 63 mm
(1.57 in, 1.97 in, 2.48 in)
Description
Its constructive design with fixed and adjustable insert seats enables the PDK-SN to produce fine finishing surfaces up to a Ra value of up to 0.5 μm.
Characteristics
Entering angles 88° and 90°
Pending on the diameter, one to three insert seats are adjustable in Z direction
Exact plan and concentricity run
Mixed assembly with ceramic and CBN cutting material possible
Application
Fine-finish milling with Ra up
to 0.5 µm
For GJL and GJS material
Advantages
Wide application range
Single and mass production
With and without coolant applicable
For ISO group P + K
Catalogs
SPK® PFK90-TN
132 Pages
