Electric stacker truck S100 series
walk-behind12 Vtransport

electric stacker truck
electric stacker truck
electric stacker truck
electric stacker truck
electric stacker truck
electric stacker truck
electric stacker truck
Add to favorites
Compare this product


Characteristics

Energy
electric
Operator
walk-behind
Voltage
12 V
Applications
transport, for warehouse, for pallet, handling, battery
Other characteristics
compact
Carrying capacity

1,000 kg
(2,204.6 lb)

Lifting height

Max.: 2,000 mm
(78.74 in)

Min.: 1,540 mm
(60.63 in)

Free lift

1,495 mm, 1,500 mm, 1,915 mm, 1,920 mm
(58.9 in, 59.1 in, 75.4 in, 75.6 in)

Height of mast when lowered

1,890 mm, 2,310 mm
(74.4 in, 90.9 in)

Height of mast when raised

1,890 mm, 2,040 mm, 2,310 mm, 2,460 mm
(74.41 in, 80.31 in, 90.94 in, 96.85 in)

Overall width

700 mm, 1,100 mm, 1,500 mm
(27.6 in, 43.3 in, 59.1 in)

Overall length

1,680 mm, 1,722 mm
(66.1 in, 67.8 in)

Fork width

250 mm, 550 mm, 800 mm
(9.8 in, 21.7 in, 31.5 in)

Fork length

1,150 mm
(45.28 in)

Fork thickness

40 mm, 60 mm
(1.57 in, 2.36 in)

Fork spacing

100 mm, 364 mm, 1,400 mm
(3.94 in, 14.33 in, 55.12 in)

Turning circle radius

1,340 mm, 1,365 mm
(52.8 in, 53.7 in)

Battery capacity

63 Ah

Motor power traction

0.7 kW
(0.952 hp)

Motor power lifting

1.2 kW
(1.632 hp)

Travel speed

4.5 km/h, 5.5 km/h
(2.8 mph, 3.42 mph)

Lifting speed

0.1 m/s, 0.2 m/s
(0.328 ft/s, 0.656 ft/s)

Weight

467 kg, 560 kg
(1,029.56 lb, 1,234.59 lb)

Description

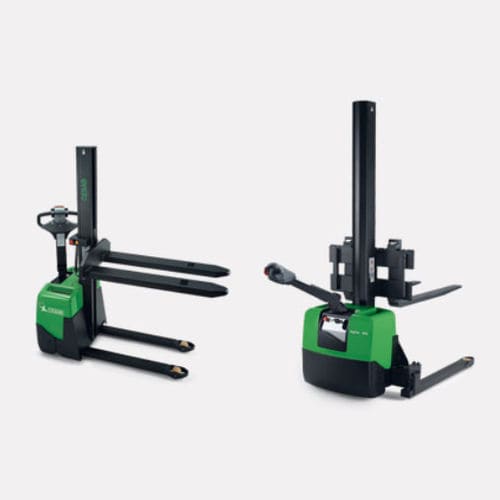

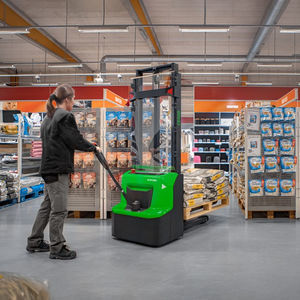

Low intensity stacker trucks The CESAB S110 and S110S are the perfect solution for low-intensity applications. Weighing less than 500 kg, its exception compactness and low noise level make that this powered stacker can be used in a wide variety of applications. The low-maintenance and revolutionary AC motor offers great energy efficiency, as well as durability and strength. As the electric brake applies automatically, there is no risk of rolling backwards when working on slopes. Used in grocery and retail stores, offices, warehouses and manufacturing industry, the CESAB S100 Series is an excellent choice for low intensity applications and confined areas. The CESAB S110 and S110S offer a built-in charger for fast and easy charging, you just plug it into a power socket, done! The PIN-code access allows individual parameters settings and can be configured so it adapts the truck to the user’s drive abilities or specific restrictions in working areas. It also protects against unauthorised use of the truck, very important when used in retail stores. The low-maintenance AC motors offers durability and strength as well as low energy consumption. When not in use, the standby mode cuts most energy consumers automatically to safe battery capacity.
