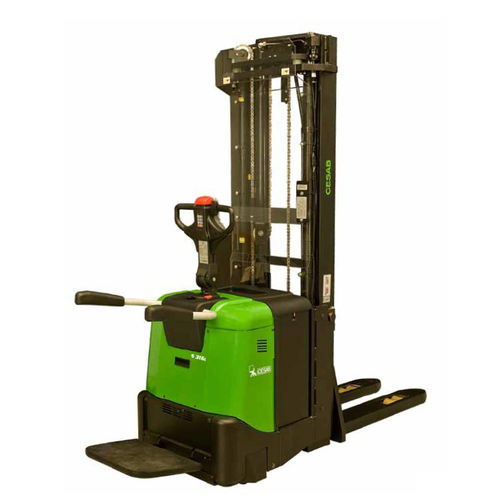

Electric stacker truck S300 series
with rider platform24 Vfor pallet

electric stacker truck
electric stacker truck
electric stacker truck
electric stacker truck
electric stacker truck
electric stacker truck
electric stacker truck
electric stacker truck
electric stacker truck
electric stacker truck
electric stacker truck
Add to favorites
Compare this product


Characteristics

Energy
electric
Operator
with rider platform
Voltage
24 V
Applications
for pallet, for materials handling, traction
Carrying capacity

1,200 kg, 1,400 kg, 1,600 kg, 2,000 kg
(2,645.5 lb, 3,086.5 lb, 3,527.4 lb, 4,409.2 lb)

Lifting height

Max.: 6,000 mm
(236.22 in)

Min.: 1,950 mm
(76.77 in)

Battery capacity

Max.: 500 Ah

Min.: 201 Ah

Travel speed

6 km/h, 7.5 km/h, 8 km/h, 9 km/h, 10 km/h
(3.73 mph, 4.66 mph, 4.97 mph, 5.59 mph, 6.21 mph)

Description

Versatile powered stacker trucks The CESAB S300 range merges high capacities with excellent manoeuvrability and maximum productivity. The driving speeds up to 10 km/h, its best-in-class turning radius and the foldable driver platform make it the sprinter for your material handling operation. CESAB’s Powertrak drive unit adjusts the pressure on the drive wheel proportional to the load on the forks and assures optimal traction and stability under all circumstances. Offering highest lift and lowering speeds, the operator spends less time in stacking loads and manages more load movements. The adjustable tiller arm provides best comfort and combines all functions in a intuitive tiller head that can be operated with either hand. The Creep Speed feature allows precise and safe manoeuvring in confined spots. The side guards can be folded down in one single move of the hand. With the platform flipped up, the CESAB P300 becomes a perfect pedestrian truck, easy to control even in the tightest spots. The unique CESAB Powerdrive combines contactless controls and CAN-communication to ensure excellent driving characteristics and reduced downtime. This feature also provides quick, reliable communication and enables programmability. The truck can be adapted to the abilities of the user or the restrictions in certain working areas. The CESAB S300 range is the ideal solution when it concerns longer drive distances in more demanding material handling applications.
