Compact reach truck R200 series
electricside-facing seatedhandling

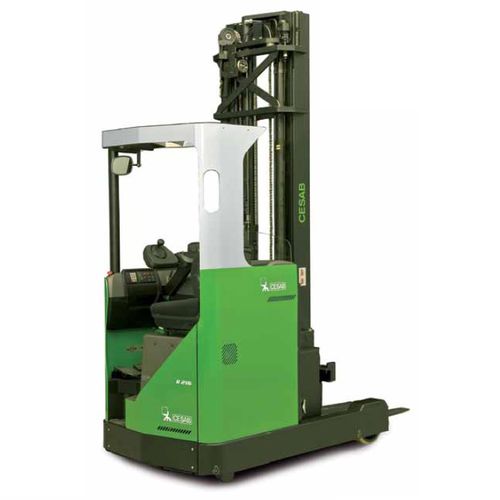

Compact reach truck - R200 series - CESAB - electric / side-facing seated / handling
Compact reach truck - R200 series - CESAB - electric / side-facing seated / handling
Compact reach truck - R200 series - CESAB - electric / side-facing seated / handling - image - 2
Compact reach truck - R200 series - CESAB - electric / side-facing seated / handling - image - 3
Compact reach truck - R200 series - CESAB - electric / side-facing seated / handling - image - 4
Compact reach truck - R200 series - CESAB - electric / side-facing seated / handling - image - 5
Compact reach truck - R200 series - CESAB - electric / side-facing seated / handling - image - 6
Compact reach truck - R200 series - CESAB - electric / side-facing seated / handling - image - 7
Compact reach truck - R200 series - CESAB - electric / side-facing seated / handling - image - 8
Compact reach truck - R200 series - CESAB - electric / side-facing seated / handling - image - 9
Compact reach truck - R200 series - CESAB - electric / side-facing seated / handling - image - 10
Add to favorites
Compare this product


Characteristics

Motor type
electric
Operator
side-facing seated
Applications
handling
Other characteristics
compact, for high-level work
Carrying capacity

1,200 kg, 1,400 kg, 1,600 kg
(2,645.5 lb, 3,086.5 lb, 3,527.4 lb)

Lifting height

Min.: 3,350 mm
(131.89 in)

Max.: 10,000 mm
(393.7 in)

Overall width

1,120 mm
(44.1 in)

Load center distance

600 mm
(23.6 in)

Travel speed

10 km/h, 11 km/h, 11.2 km/h
(6.2 mph, 6.8 mph, 7 mph)

Lifting speed

0.3 m/s, 0.4 m/s
(0.984 ft/s, 1.312 ft/s)

Lowering speed

0.4 m/s, 0.5 m/s
(1.312 ft/s, 1.64 ft/s)

Rated output

7.4 kW, 7.5 kW
(10.1 hp, 10.2 hp)

Description

Compactly designed reach trucks The CESAB R200 is a compact and flexible reach truck. With its narrow designed chassis it is ideal for stacking in narrow and constrained spots. The R200 offers high drive and lift speeds linked to optimal comfort for the driver. The open-design overhead guard and the wide-view mast and carriage guarantee excellent all-round visibility. The performances of the CESAB R200 are programmable to adapt the truck to the driver’s abilities or restrictions in special areas of your site The driver is at ease with the simple and logical fingertip controls placed on the ergonomic console with integrated wrist rest. The electric steering allows effortless safe and precise manoeuvring. The fully adjustable cockpit even offers an adjustable footplate to ensure that every driver finds his most comfortable drive position. The low and open footstep allows easy moving in and out of the truck. The pedal layout is identical to a car so no adaptation is necessary. The 360° steering takes the operator comfort to again a higher level. The new CESAB R200 range was created in order to deliver exceptional productivity to materials handling operations in potentially confined workplaces. The sleek, slim design makes it perfect for demanding situations which require high levels of productivity and applications such as block stacking and drive-in racking.

Catalogs

R200
R200
5 Pages
