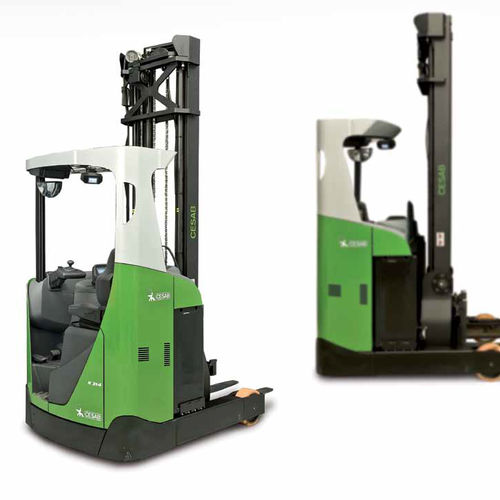

High-performance reach truck R300 series
electricside-facing seatedhandling

High-performance reach truck - R300 series - CESAB - electric / side-facing seated / handling
High-performance reach truck - R300 series - CESAB - electric / side-facing seated / handling
High-performance reach truck - R300 series - CESAB - electric / side-facing seated / handling - image - 2
High-performance reach truck - R300 series - CESAB - electric / side-facing seated / handling - image - 3
High-performance reach truck - R300 series - CESAB - electric / side-facing seated / handling - image - 4
High-performance reach truck - R300 series - CESAB - electric / side-facing seated / handling - image - 5
High-performance reach truck - R300 series - CESAB - electric / side-facing seated / handling - image - 6
High-performance reach truck - R300 series - CESAB - electric / side-facing seated / handling - image - 7
High-performance reach truck - R300 series - CESAB - electric / side-facing seated / handling - image - 8
High-performance reach truck - R300 series - CESAB - electric / side-facing seated / handling - image - 9
High-performance reach truck - R300 series - CESAB - electric / side-facing seated / handling - image - 10
High-performance reach truck - R300 series - CESAB - electric / side-facing seated / handling - image - 11
High-performance reach truck - R300 series - CESAB - electric / side-facing seated / handling - image - 12
High-performance reach truck - R300 series - CESAB - electric / side-facing seated / handling - image - 13
High-performance reach truck - R300 series - CESAB - electric / side-facing seated / handling - image - 14
High-performance reach truck - R300 series - CESAB - electric / side-facing seated / handling - image - 15
High-performance reach truck - R300 series - CESAB - electric / side-facing seated / handling - image - 16
High-performance reach truck - R300 series - CESAB - electric / side-facing seated / handling - image - 17
High-performance reach truck - R300 series - CESAB - electric / side-facing seated / handling - image - 18
Add to favorites
Compare this product


Characteristics

Motor type
electric
Operator
side-facing seated
Applications
handling
Other characteristics
high-performance, high-speed
Carrying capacity

1,400 kg, 1,600 kg, 1,800 kg, 2,000 kg, 2,500 kg
(3,086.5 lb, 3,527.4 lb, 3,968.3 lb, 4,409.2 lb, 5,511.6 lb)

Lifting height

Max.: 13,000 mm
(511.81 in)

Min.: 4,850 mm
(190.94 in)

Overall width

1,270 mm
(50 in)

Load center distance

600 mm
(23.6 in)

Travel speed

10 km/h, 10.3 km/h, 11 km/h
(6.2 mph, 6.4 mph, 6.8 mph)

Lifting speed

Max.: 0.9 m/s
(2.953 ft/s)

Min.: 0.4 m/s
(1.312 ft/s)

Lowering speed

0.6 m/s
(1.969 ft/s)

Rated output

11 kW, 15 kW
(15 hp, 20.4 hp)

Description

High intensity reach trucks The CESAB is the high performance truck with exceptional and unique characteristics for high-speed operations demanding maximum output. Safety, both for the driver and the load, as well as comfort are uncompromised! The open-design overhead guard and the wide-view mast and carriage guarantee excellent all-round visibility. Optionally, a transparent roof is available to take visibility to a supplementary level. The performances of the CESAB R300 are programmable to adapt the truck to the driver’s abilities or restrictions in special areas of your site. The fully adjustable cockpit, seat, console, steering column, even offers an adjustable footplate to ensure that every driver finds his most comfortable drive position. The low and open footstep allows easy moving in and out of the truck. The pedal layout is identical to a car so no adaptation is necessary. The 360° steering takes the operator comfort to again a higher level. The Transition Lift Control (TLC) completely eliminates shocks while deploying the mast and allows full lifting speed from the ground to maximum lift height The Optimised Truck Performance (OTP) feature is the standard electronic safety package that helps the driver to deploy the full performance of the CESAB R300 in a safe way. Automatic speed reduction when cornering, controlled speed, depending on the load and lift height, when reaching the mast in and out, the R300 controls it all for maximum performance and safety. The CESAB R300 range is guaranteed to deliver outstanding productivity from the first day and for many years to come.

VIDEO

Catalogs

R300
R300
5 Pages
