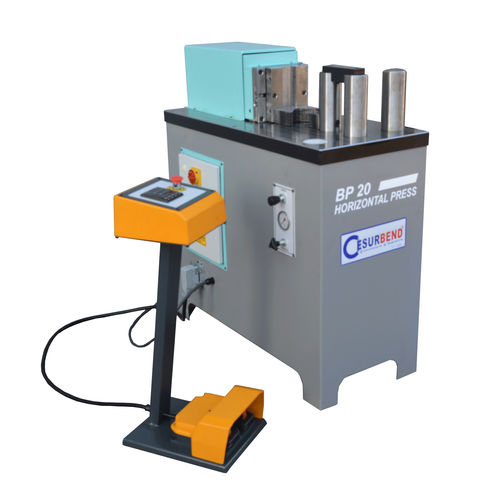

Hydraulic press HP-20bendingpunchinghorizontal
Add to favorites
Compare this product
Characteristics
- Operation
- hydraulic
- Function
- bending, punching
- Other characteristics
- horizontal
- Weight
650 kg
(1,433 lb)- Overall length
1,250 mm
(49 in)
Description
-Hydraulically moving carriage of forged steel with double slides, suitably hardened, ground and protected by dust scrapers.
-Moving beam slided on the table in rigid way.
-Easy adjustable stroke distance from front side.
-Working with foot pedal or two hand control.
-Die holder pins made in alloy steel with rapid conical change, hardened and ground to obtain a strong lock.
Workbench dimensions (mm) 500x1000
Max. stroke of mobile punch (mm) 190
Bending Capacity (mm) 200
Working Speed (mm/sec.) 9
Hydraulic oil tank capacity (lt) 20
Noise level(db) 70
Working Pressure (ton) 20
Engine Power (kW) 2.2
Machine Width (mm) 480
Machine Height (mm) 900
