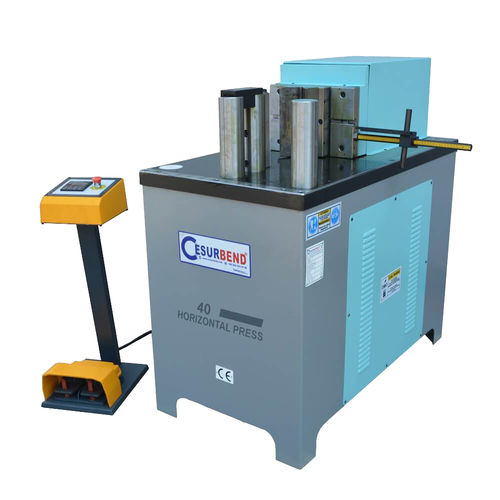

Hydraulic press HP-40punchinghorizontal
Add to favorites
Compare this product
Characteristics
- Operation
- hydraulic
- Function
- punching
- Other characteristics
- horizontal
- Weight
920 kg
(2,028 lb)- Overall width
1,150 mm
(45 in)
Description
-Hydraulically moving carriage of forged steel with double slides, suitably hardened, ground and protected by dust scrapers.
-Moving beam slided on the table in rigid way.
-Easy adjustable stroke distance from front side.
-Working with foot pedal or two hand control.
-Roomy side tool holder shelves beside the machine.
-Die holder pins made in alloy steel with rapid conical change, hardened and ground to obtain a strong lock.
Workbench dimensions (mm) 620x1050
Mobile punch operating speed (m/min.) 470
Min.Max. Mobile and fixed pins height (mm) 120/370
Max. stroke of mobile punch (mm) 250
Advance and return speed(m/min.) 1750/2000
Mobile and fixed pins height (mm) 120
Mobile and fixed pins diameters (mm) 55/63
Max. operating pressure in hydraulic circuit 250
Max. operating pressure (ton) 40
Height of workbench from the ground(mm) 930
Engine Power (kW)4Noise level(db) 70
Hydraulic oil tank capacity (lt) 70
Machine Length (mm) 700
Machine Height (mm) 950
