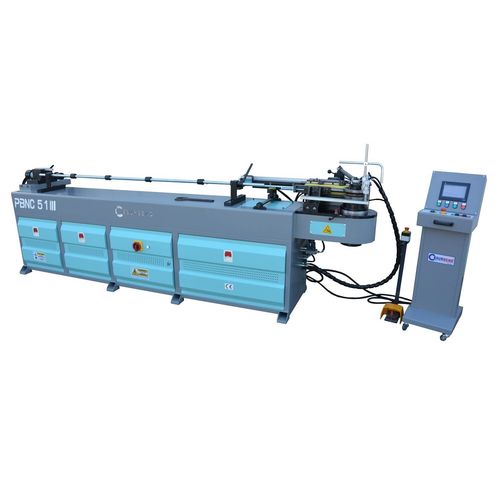

Hydraulic bending machine PBNC-51tubemandrel
Add to favorites
Compare this product
Characteristics
- Operation
- hydraulic
- Product handled
- tube
- Other characteristics
- mandrel
- Bending capacity
Max.: 51 mm
(2.01 in)Min.: 0 mm
(0 in)- Bending radius
Max.: 250 mm
(9.84 in)Min.: 0 mm
(0 in)- Overall length
4,000 mm
(157 in)- Overall width
1,300 mm
(51 in)- Total height
1,300 mm
(51 in)
Description
-At mandrel bending pipe is placed for bending process, then bended with bending die to make clamp die pipe.On the bending die, the tube is bent in the radius of the die.If the mandrel and wiper die bending is used, better results are obtained in bends with a lower radius and a higher quality and thin wall thickness.
-The machine includes three pistons.Out of hydraulic squeezing, there is hydraulic mandrel available at the back side.
Max. Wall Thicknes(mm) 3,5
Max. Bending Angle (°) 190
Bending Speed (0/sn) 40
Pipe Loading Length (mm) 3000
Engine Power (kW) 5.5
Machine Weight(kg) 1400
