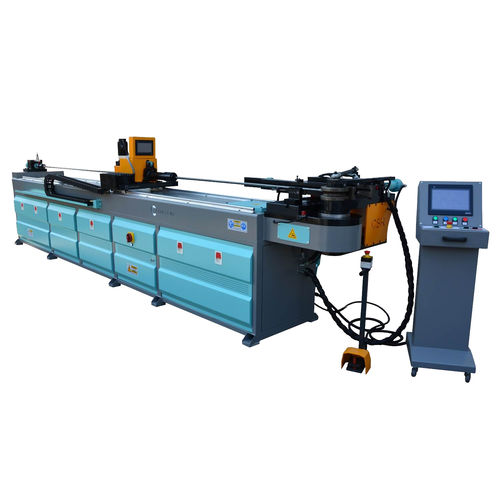

Hydraulic bending machine PBNC-65 AtubeNCdigital
Add to favorites
Compare this product
Characteristics
- Operation
- hydraulic
- Product handled
- tube
- Control
- NC, digital
- Other characteristics
- mandrel
- Bending capacity
Max.: 63 mm
(2.48 in)Min.: 0 mm
(0 in)- Bending radius
Max.: 250 mm
(9.84 in)Min.: 45 mm
(1.77 in)- Overall width
1,450 mm
(57 in)- Total height
1,420 mm
(56 in)
Description
Feeding & Rotation Axis Digital Controll Hydraulic Pens Clamp
The machine is 5 pistons.
In our standard NC machines, using post-twist distance and rotating operator striking and paralelling devices, while getting results; you can do faster and error-free bending by following the progress and rotation positions of the bends made with our NC Car System machines.
Max.Wall Thickness (mm) 3,5
Max. Bending Angle (°) 190
Bending Speed (rev/min) 7-10
Working Tolerances-Bending (mm) ± 0.25 mm
Pipe Loading Length (mm) 4000
Bending Axis Movement 7.5 Kw Geared Motor (YILMAZ)
Hydraulic System (kW) 4
Max.Hydraulic Pressure (bar) 140 Kg. / cm2 (bar)
Oil Tank Capacity (lt) 50
Machine Length (mm) 6200
Machine Weight (kg) 2100
VIDEO
Catalogs
PBNC-65 & PBNC-65-A
1 Pages
Catalog 2020
36 Pages
