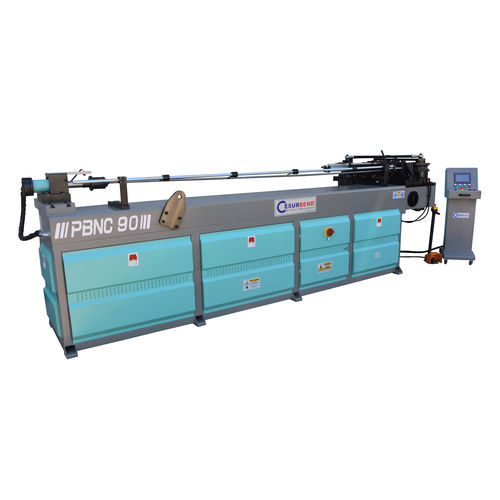

Hydraulic bending machine PBNC-90 tubedigitalmandrel
Add to favorites
Compare this product
Characteristics
- Operation
- hydraulic
- Product handled
- tube
- Control
- digital
- Other characteristics
- mandrel
- Bending capacity
Min.: 0 mm
(0 in)Max.: 90 mm
(3.54 in)- Bending radius
Min.: 0 mm
(0 in)Max.: 250 mm
(9.84 in)- Overall length
4,700 mm
(185 in)- Overall width
1,300 mm
(51 in)- Total height
1,250 mm
(49 in)
Description
-Quaternary Adjustable Gauge Distance Bracket
-Chain twisting system
-Geared motor driven
-Touch screen control panel
-Food pedal control
-Hydraulic movement of the mandrel
-Hydraulic recline movement
-Hydraulic clamping movement
-Hydraulic slide system
-The machine is 4 pistons.
-7"Color Touchscreen Display
-15 sequential bending possibilities
-100 program memory capacity programming
-PLC Control Schneider
Max. Wall Thickness (mm) 4
Max. Bending Angle (°) 190
Bending Speed (rev/min) 3-6
Pipe Loading Length (mm) 3800
Bending Engine Power (kW) 15
Hydraulic Motor Power (kW) 5,5
Machine Weight (kg) 2650
Catalogs
PBNC-90 & PBNC-90 A
1 Pages
