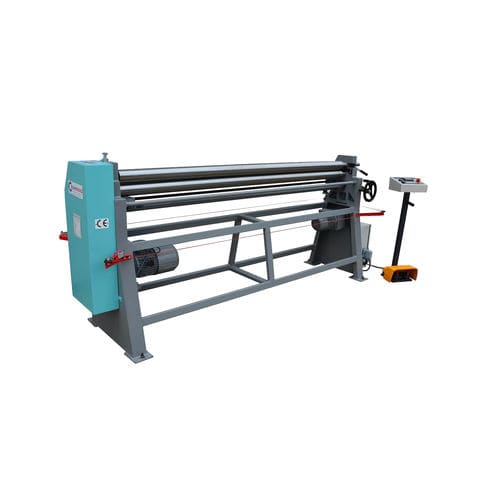

3-roll plate bending machine MR Series
with mobile control panelconical

3-roll plate bending machine
3-roll plate bending machine
3-roll plate bending machine
3-roll plate bending machine
Add to favorites
Compare this product


Characteristics

Number of rollers
3-roll
Other characteristics
with mobile control panel, conical

Description

-Top and bottom rolls powered by a single Gearbox and gear system(RM) -SAE 1050 Quality Certificated Steel Rolls with high tensile strength -Cast Iron Main Frames -Mobile Control Panel by foot pedal on MR models -Conical Bending Device -Manuel dropend -Wire grooves at the end of the rolls -Precision Bending with Brake Motor on MR models -Built according to EC Safety Directives (CE Mark) -User’s Manual *Optional -Motorised back roll adjustment -Digital readout for rear roll -Induction hardened rolls -Optional variable speed system -Optional full closed sheet covers Working Length(mm) - 1050 - 1270 - 1550 - 2050 Bending Capacity (mm) - 3.3 - 2.5 - 2.2 - 1.5 Rolls Diameters (Ømm) - 90 - 90 - 90 - 95 Length (mm) - 1910 - 2110 - 2410 - 2910 Width (mm) - 850 - 850 - 850 - 850 Height (mm) - 1130 - 1130 - 1130 - 1130 Weight (kg) - 450 - 520 - 550 - 585

VIDEO
