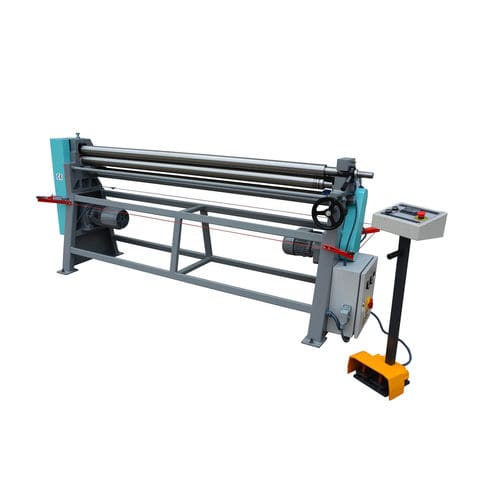

3-roll plate bending machine MRM Series

manualwith mobile control panelconical

-Top and bottom rolls powered by a single Gearbox and gear system(RM) -SAE 1050 Quality Certificated Steel Rolls with high tensile strength -Cast Iron Main Frames -Mobile Control Panel by foot pedal on RM models -Conical Bending Device -Manuel dropend -Wire grooves at the end of the rolls -Precision Bending with Brake Motor on RM models -Built according to EC Safety Directives (CE Mark) -User’s Manual *Optional -Motorised back roll adjustment -Digital readout for rear roll -Induction hardened rolls -Optional variable speed system -Optional full closed sheet covers Working Length(mm) - 1050 - 1270 - 1550 - 2050 - 1050 - 1270 - 1550 - 2050 Bending Capacity (mm) - 3.3 - 2.5 - 2.2 - 1.5 - 1.5 - 1.5 - 1.0 - 1.0 Rolls Diameters (Ømm) - 90 - 90 - 90 - 95 - 70 - 75 - 70 - 75 Rolling Speed(m/dk) - 6 - 6 - 6 - 6 - 6 - 6 - 6 - 6 Motor Power(kw) - 1.1 - 1.1 - 1.1 - 1.1 - 1.1 - 1.1 - 1.1 - 1.1 Length (mm) - 1750 - 1950 - 2250 - 3030 - 1300 - 1550 - 2000 - 3030 Width (mm) - 850 - 850 - 850 - 850 - 850 - 850 - 850 - 850 Height (mm) - 1130 - 1130 - 1130 - 1130 - 1100 - 1100 - 1100 - 1100 Weight (kg) - 500 - 570 - 600 - 635 - 320 - 460 - 450 - 545
