Fixed scaffolding PH 70

facademodular

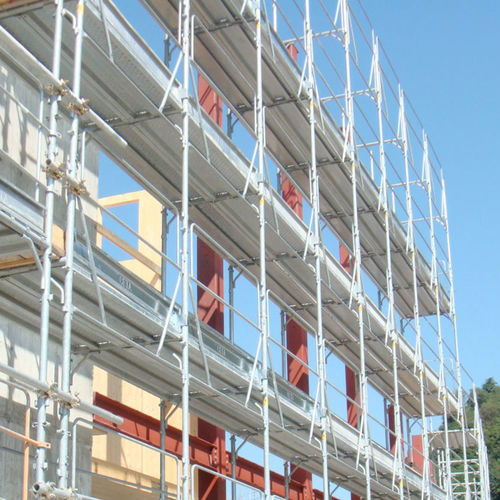

PRATICO H - FRAMES PH 70 AND PH 105 The scaffolding system in hot-dip galvanised steel with 2 basic elements (H-frame and guardrail frame) studied for increased safety and rapid assembly. Supplied with frame bay lengths of 150 / 180 cm and a width of 105 cm (PH 105) and 70 cm (PH 70). PRATICO PH 70 AND PH 105 H-FRAME SCAFFOLDING “H” bush-coupler frame S235JR, S355JR steel Diameter 48.3 mm Nominal thickness 2.9 mm Hot-dip galvanised coating in accordance with UNI EN ISO 1461 In accordance with regulations UNI EN ISO 15607 and UNI EN 1418 For loads of 300 N/m2 EN 12811 Certificate of conformity of the scaffolding to European regulations EN 12810-1 and EN 12811-1 PH 70 SYSTEM DIMENSIONS Widtha70 cm Bay length150 / 180 cm Height200 cm Fields of application: PH 70 (width 70 cm) for maintenance in the residential and industrial sectors (Italy)
