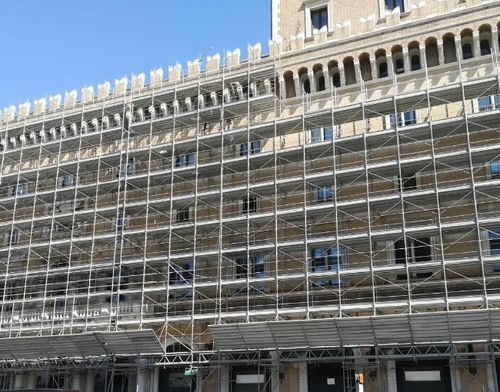

Fixed scaffolding facademodularwith stairway
Add to favorites
Compare this product
Characteristics
- Type
- fixed
- Applications
- facade
- Other characteristics
- modular, with stairway
Description
TUBE AND COUPLER SCAFFOLDING SYSTEM
The most traditional scaffolding system is still highly popular due to its versatility. It is made up of galvanised steel tubes and orthogonal or swivel couplers.
TUBE AND COUPLER SCAFFOLDING
System With tubes and couplers
MaterialS235JR steel
TubesDiameter 48.3 mm
Nominal thickness 3.2 mm
Couplers • Cold moulded orthogonal coupler - 4-bolt fastening.
• Hot moulded orthogonal coupler - 2-bolt fastening.
• Cold moulded swivel coupler - 4-bolt fastening.
FinishHot-dip galvanised coating in accordance with UNI EN ISO 1461
Ministerial authorisationFor loads of 300 N/m2
EN 12811
Fields of application:
Maintenance
Construction
Restoration
