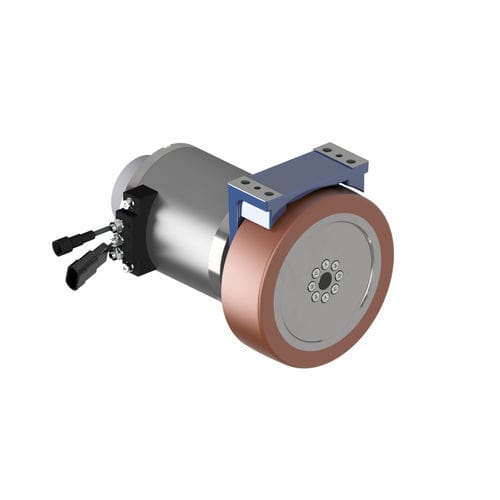

Drive wheel for industrial applications RE seriesIP67reinforced
Add to favorites
Compare this product
Characteristics
- Applications
- for industrial applications
- Protection level
- IP67, reinforced
- Torque
Max.: 9,000 Nm
(6,638.06 ft.lb)Min.: 44 Nm
(32.45 ft.lb)- Power
Max.: 12,000 W
(16.32 hp)Min.: 200 W
(0.27 hp)- Load
Max.: 7,000 kg
(15,432.4 lb)Min.: 250 kg
(551.2 lb)- Speed range
7.2 km/h
(4.47 mph)- Diameter
200 mm, 250 mm, 460 mm
(7.87 in, 9.84 in, 18.11 in)
Description
RE is the traditional dual drive traction system which uses these planetary gear motors with reinforced bearings for high radial loads. Available with PMAC/AC/DC motors, they are optimised for intermittent or continuous duty. They offer ingress protection of up to IP67, are designed for low and high voltage, and are optimised for traction on the widest range of terrains, both indoors and outdoors.
