IP66 drive wheel MRT seriesheavy-duty
Add to favorites
Compare this product
Characteristics
- Protection level
- IP66, heavy-duty
- Torque
Max.: 1,400 Nm
(1,032.59 ft.lb)Min.: 500 Nm
(368.78 ft.lb)- Power
Max.: 6,000 W
(8.16 hp)Min.: 500 W
(0.68 hp)- Load
Max.: 3,500 kg
(7,716.2 lb)Min.: 1,000 kg
(2,204.6 lb)- Speed range
Max.: 15 km/h
(9.32 mph)Min.: 8 km/h
(4.97 mph)- Diameter
Max.: 457 mm
(17.99 in)Min.: 230 mm
(9.06 in)
Description

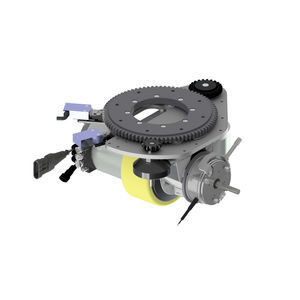

In our multi-directional vertical electric drive wheels, the traction motor is located above the wheel, thus reducing the space required for steering. Quiet and efficient, they do not impose limits on the steering angle, improving driving times. They are available with PMAC/AC/DC motors, optimised for intermittent or continuous duty use, and offer ingress protection of up to IP66. Designed for low and high voltage, they are dedicated to traction on solid terrain, both indoor and outdoor.
