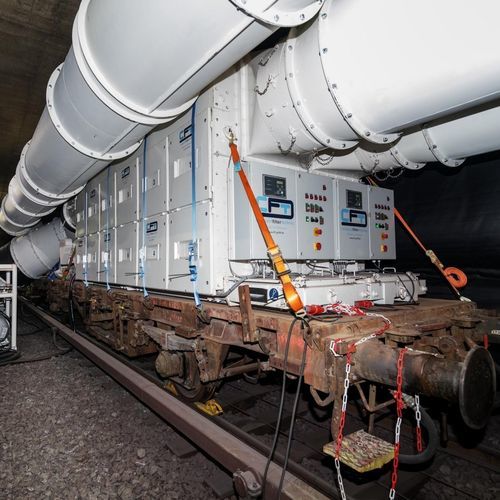

Gas extraction system HBKK 1/400-2-11

dust

Dust removal from TBMs, semi-mobile or stationary dust removal during crushing and mechanical processing Generally overhauled Further accessories, such as connection pieces, suitable fan stations or other compact filter elements can be offered to you on request. Output - up to 800 m³/min (48,000 m³/h) Quality of the compact filter elements - CFM Residual dust content in the clean gas after filtering - < 0.1 mg/m³ Number of valves - 120 units Control valve - 1 unit, 24 Volt Pressure controller - 1 unit, 24 Volt Filter dedusting - Electrically controlled difference pressure dedusting unit Power consumption - 9.54 kW (2 x 2.2 kW trough screw; 2 x 2.2 kW inclined screw; 2 x 0.37 kW rotary valve) Operating pressure - 4.5 bar Compressed air requirement - approx. 5.0 m³/min Nominal size of the compressed air supply - 2" Colour - signal white RAL 9010 Total system dimensions - approx. 8.2 m x 1.12 m x 2.11 m system (length x width x height)
