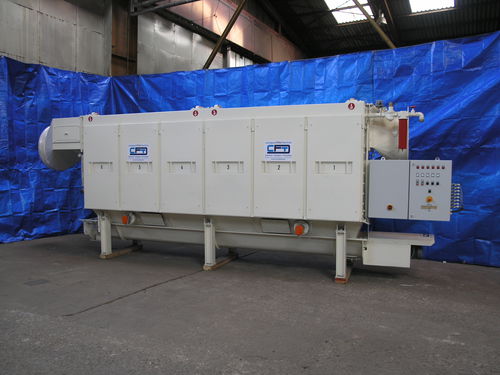

Gas extraction system HTKS 1/600

dust

Dust removal from TBMs, semi-mobile or stationary dust removal during crushing and mechanical processing Generally overhauled Further accessories, such as connection pieces, suitable fan stations or other compact filter elements can be offered to you on request. Output - up to 600 m³/min (36,000 m³/h) Filter surface - 1080 m² Number of compact filter elements - 72 units Quality of the compact filter elements - CF (uncoated) Residual dust content in the clean gas after filtering - < 0.5 mg/m³ Control valve - 1 unit, 24 Volt Pressure controller - 1 unit, 24 Volt Filter dedusting - Electrically controlled difference pressure dedusting unit Operating pressure - 4.5 bar Compressed air requirement - approx. 5.0 m³/min Nominal size of the compressed air supply - 2" Colour - signal white RAL 9010 Total system dimensions - approx. 8,10 m x 1,23 m x 2,94 m system (length x width x height)
