- CHALLENGE INDUSTRIAL CO., Ltd

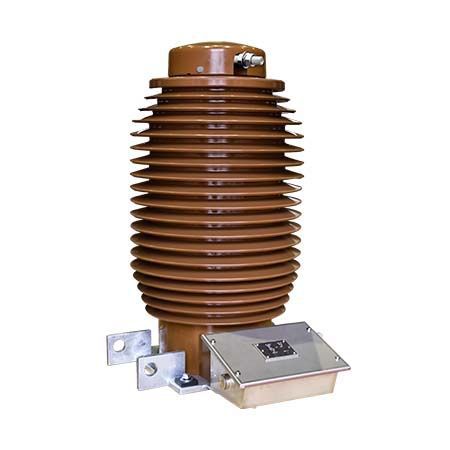

Current transformer AWF-72dryfor outdoor servicehigh-voltage
Add to favorites
Compare this product
Characteristics
- Type
- current
- Configuration
- dry
- Applications
- for outdoor service
- Electrical characteristics
- high-voltage
- Norms
- IEC
- Other characteristics
- epoxy resin
- Output power kVA
0.02 kVA, 0.03 kVA, 0.06 kVA
(0.027192 hp, 0.040789 hp, 0.081577 hp)- Secondary voltage
140 kV, 180 kV, 225 kV
- Primary current
Min.: 50 A
Max.: 1,200 A
- Secondary current
1 A, 5 A
- Frequency
50 Hz, 60 Hz
Description
Cast in Araldite® UV-resistant cycloaliphatic epoxy resin, this high-voltage (72 kV) outdoor-type current transformer is designed to withstand solar ultraviolet radiation and IEC-defined pollution level III (“Heavy”).
About the Product
Cast in Araldite® UV-resistant cycloaliphatic epoxy resin, this high-voltage (72 kV) outdoor-type current transformer is designed to withstand solar ultraviolet radiation and IEC-defined pollution level III (“Heavy”). This HV current transformer maintains its excellent electrical properties even amidst long-term exposure to salt fog, high temperature, and high humidity.
Catalogs
No catalogs are available for this product.
See all of CHALLENGE INDUSTRIAL CO., Ltd‘s catalogsOther CHALLENGE INDUSTRIAL CO., Ltd products
CURRENT TRANSFORMERS
