Dry transformer EP-3SF/6SF SERIES

for indoor servicesingle-phasemedium-voltage

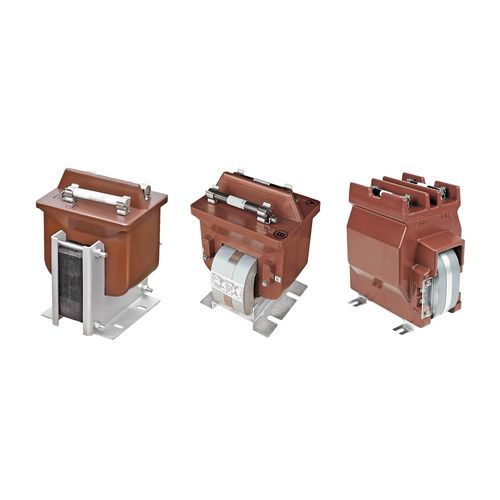

Indoor medium-voltage single-phase coil molded potential transformers for power systems ≦ 7.2 kV. Laminated-core & cut-core models. 2 primary-side fuses. Circuit breaker operation power source (EP-6SFK). Intended for power systems of 7.2 kV or below, these single-phase coil molded potential transformers are compact and economical. Model EP-3SF2 features a laminated core and is fixed by two metal frames; cut-core models EP-3SF5 and EP-6SFK are fitted on a metal base. All of the models come with two fuses on the primary side and are insulated with Araldite® epoxy resin. The EP-3SF/6SF Series is characterized by high moisture resistance and excellent electrical properties. In addition, the EP-6SFK model can be used as an auxiliary power source for circuit breaker operation (see Specifications).
