- CHALLENGE INDUSTRIAL CO., Ltd

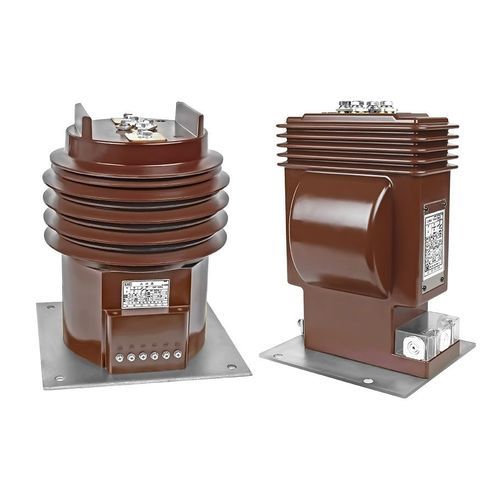

Current transformer EWF-30D SERIESencapsulatedIECepoxy resin
Add to favorites
Compare this product
Characteristics
- Type
- current
- Configuration
- encapsulated
- Norms
- IEC
- Other characteristics
- epoxy resin
- Output power kVA
0.02 kVA, 0.03 kVA
(0.027192 hp, 0.040789 hp)- Primary voltage
36 V
- Primary current
Max.: 1,200 A
Min.: 300 A
- Secondary current
1 A, 5 A
- Frequency
50 Hz, 60 Hz
Description
Suited to ≤ 36kV power systems, these multi-ratio current transformers are available in 2-core and 3-core options. Insulated with Araldite® epoxy and intended to work with measuring or monitoring instruments, or with protective relays.
The EWF-30D Series multi-ratio current transformers are insulated with Araldite® epoxy resin and are available in two-core and three-core options. Suited to 36kV (max.) power systems, these current transformers are intended to operate in conjuction with measuring or monitoring instruments, or with protective relays. Fully compliant with the regulations for 36kV products according to IEEE or IEC Standards, these products are characterized by excellent moisture resistance, superior insulation, and high mechanical strength.
• Standards: IEC or IEEE*
• Indoor usage; epoxy-cast type
