Rotary compressor CA series

scrollairelectric

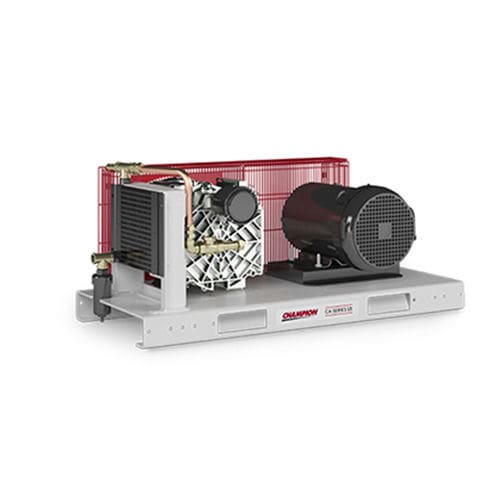

Rotary Scroll Air Compressor 2.2-7.5kW (3-10HP) The CA Series products are fixed speed, single stage, 100% oil-less rotary scroll compressors from 3 - 10 HP (per pump). The scroll packages are designed specifically for medical, industrial, and laboratory applications in a variety of configurations. The CA Series medical scroll systems meet current CSA Standards, are NFPA 99 Code compliant, and are offered in several designated flow designs. 50/60 Hz 3-10HP 116 or 140 PSI Tank Mount, Base Mount, Stacked Frame, or Bare Air End Medical, Industrial, or Laboratory Champion CA Series compressors offer several standard features and many optional features designed to meet your requirements and exceed your expectations. Industrial 5 Micron industrial grade intake filter ASME coded receiver Premium efficient TEFC motor Integral cooling fan ASME coded receiver Special Tip Seal Design Air-cooled aftercooler with separator and trap Medical 5 Micron industrial grade intake filter Vinyl lined receiver Special Tip Seal Design Premium efficient TEFC motor Integral cooling fan Vinyl lined receiver Special Tip Seal Design Air-cooled aftercooler with separator and trap Mounted control panel Receiver sight and pressure gauges NFPA 99 Compliant System
