Rotary compressor CA series ES

scrollairelectric

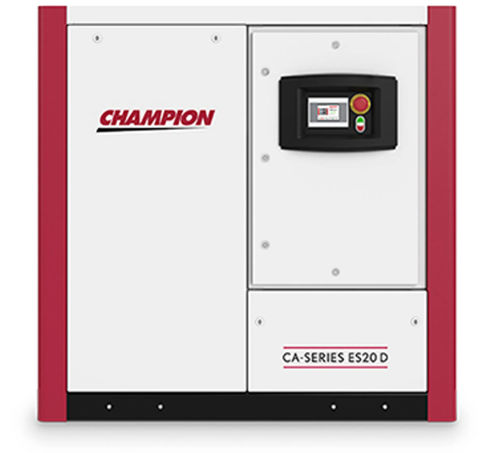

Rotary Scroll Air Compressor 3-15kW (5-20hp) The CA Series ES products are fixed-speed, single-stage, 100% oil-less rotary scroll compressors from 5-10 HP (per pump), packaged in a sound attenuating enclosure. Scroll packages have been designed specifically for laboratory, industrial, and other clean air applications in a variety of configurations. The CA Series ES rotary scroll packages provide the low sound level desired by most applications. Systems meet current CSA Standards and are offered in several designated flow designs. 50/60 Hz 5-10HP per pump (5-20HP total package) 116 or 140 PSI 100% Oil-Less, 100% Duty Cycle Bare Air Ends Simplex Base Mount or Tank Mount Duplex Base Mount Stacked Frame CA Series ES Series compressors offer several standard features and many optional features designed to meet your requirements and exceed your expectations. Industrial 5 Micron industrial grade intake filters ASME coded receiver Integral air end cooling fan High flow package cooling fan Premium efficient TEFC motor Air-cooled aftercoolers Automatic moisture drain Moisture separator Deluxe HMI Controller
