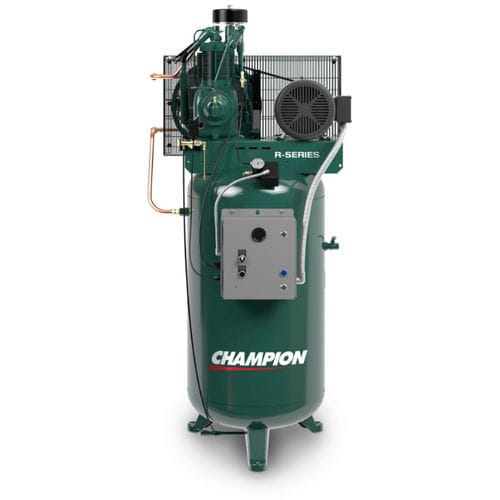

Reciprocating compressor R series

airelectricstationary

Two Stage, Splash Lubricated (2-30 HP) Reciprocating Air Compressor Champion R-Series Compressors have a time-tested, proven design. Rugged standard features, a wide selection of configurations, and quality available options make the R-Series compressors the solution to your application. Delivering high performance, long life and tremendous value. Champion compressors are the proven choice! Specifications and Features 2 - 30 HP Up to 175 PSIG 4.2 - 202 ACFM at 175 PSIG on electric driven units Gas and diesel engine drive models available Tank or Base Mounted, Simplex & Duplex Models Two Stage Splash-Lubricated Pumps 3-year Pump Warranty and 1-year Package Warranty Factory filled with ChampLub lubricant Standard Features Load-less starting (via centrifugal unloader) for lower energy costs and less wear on drive motor ASME inter-stage pressure relief valve for protection ODP NEMA 1760 RPM electric motor 10 Micron industrial grade intake filter ASME coded receiver 0-300 PSIG air pressure gauge on tank Available voltages Single phase-115/208-230 Three phase-208/230/460/575 Available Options Multiple tank sizes and variations Electric or engine driven NEMA 4 full-voltage starter upgrade ODP HE/TEFC/TEFC HE motor upgrades Control panel upgrades Aftercooler Air-cooled with or without moisture separator Water-cooled with or without moisture separator Low oil-level monitor (NEMA 1 or 4) Dual control Vibration isolators Synthetic lubricant High temperature switch (NEMA 1 or 4)
