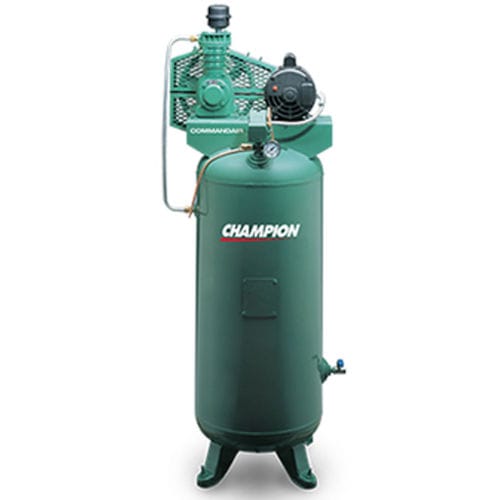

Reciprocating compressor COMMANDAIR

airelectricstationary

Single Stage, Splash Lubricated (0.5-3 HP) Reciprocating Air Compressor Champion's full line of compact Command Air reciprocating air compressors are manufactured to the same quality standards as our larger, industrial models. These packages are sized for smaller air requirements such as small industrial plants, schools, small automotive centers, and do-it-yourselfers. Specifications and Features 0.5 - 3 HP 90 PSIG 1.8 - 10.2 CFM Base or Tank Mounted, Vertical or Horizontal Configuration Single Stage, Splash Lubricated Features Automatic Start/Stop Operation Loadless Starting via Pressure Switch ODP NEMA 1760 RPM 10 Micron Industrial Grade Intake Filter Oil-Level Sight Gauge Available Voltages Single Phase - 115, 208, 230 Three Phase - 208, 230, 460 Available Options Automatic Tank Drain Vibration Isolators Sprinkler System Configurations Available Benefits Cast iron cylinders for holding rigid tolerances and ensuring high compressor efficiency. Lightweight aluminum alloy pistons ensure proper reciprocating balance. Two compression rings and one oil-control ring are used for better oil control, less air blow-by, and higher efficiency. Tapered roller bearings on two and three-cylinder models provide offer premium low friction movement for minimized efficiency. Precision balanced flywheel has fan blades for maximum compressor cooling resulting in cooler compressor operating temperatures. Rugged ductile iron crankshaft has large diameter throws for minimum bearing loads and counterweights to minimize vibration.
