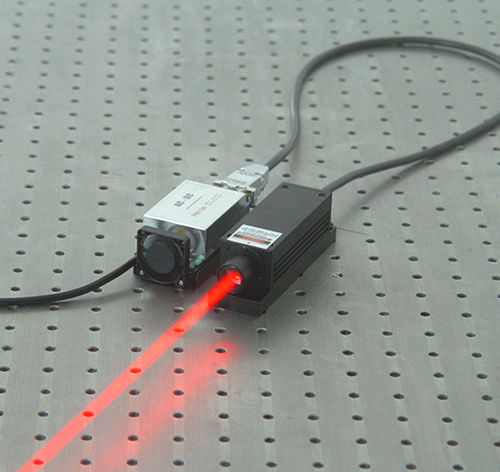

Nanosecond laser 635 series
continuous wavesolid-statered

nanosecond laser
nanosecond laser
Add to favorites
Compare this product


Characteristics

Operational mode
nanosecond, continuous wave
Technology
solid-state
Spectrum
red
Other characteristics
OEM, low-noise, fiber-coupled, line, stabilized, diode
Power

Max.: 8 W

Min.: 0.001 W

Wavelength

635 nm

Description

635 nm Red Diode Laser Long Coherent Length Red Laser at 635 nm: MDL-C-635/ 1~30mW Coherent length >1 m Narrow Linewidth Red Laser at 635 nm: MDL-E-635/ 1~30mW Linewidth< 0.03 nm TUN-634~643/ 1~10mW Wavelength tunable TEM00 Mode Red Laser at 635 nm - TEM-F-635/ 1~80mW TEM00 Nanosecond Pulsed Red Laser at 635 nm - MDL-NS-635/ 1~200mW Pulse width 10 ns ~10 ms Low Noise Red Laser at 635 nm - MLL-III-635L/ 1~200mW MLL-III-635/ 1~500mW High Stability Red Laser at 635 nm: MDL-III-635R/ 1~150mW Round beam MDL-III-635L/ 1~200mW Near TEM00 MDL-III-635/ 1~500mW MDL-SD-635/ 600~1000mW MDL-D-635/ 1~2W MDL-XD-635/ 3~8W Ultra compact Red OEM Laser Module at 635 nm OEM-SD-635/ 600~1000mW OEM-D-635/ 1~2W OEM-XD-635/ 3~5W 5~8W PGL-FC-635/ 1~50mW Fiber coupled PGL-V-FC-635/ 1~50mW PGL-F-635/ 1~20mW Controlled by PC, lens optional PGL-FS-635/ 1~100mW PGL/ MDL-L series/ 1~180mW Line beam PGL-D8-635/ 1~50mW PGL-D12-635/ 1~100mW PGL-VI-635/ 1~100mW PGL-H-635/ 1~300mW PGL-V-H-635/ 1~700mW
