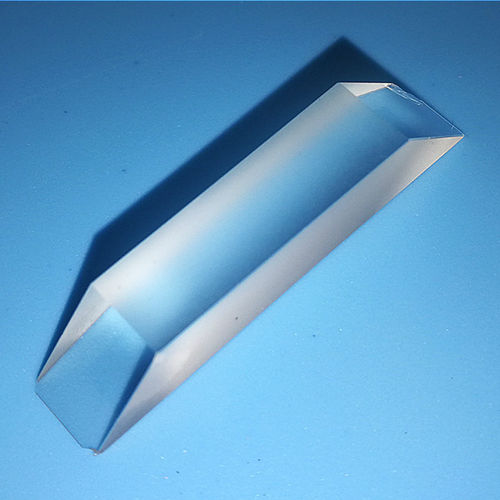

Optical Dove prism
BK7H-K9Lfused silica

optical Dove prism
optical Dove prism
optical Dove prism
optical Dove prism
Add to favorites
Compare this product


Characteristics

Type
optical Dove
Material
BK7, H-K9L, fused silica

Description

Dove prisms may invert, reverse, or rotate an image based on which face the light is incident on, so they are also called image rotation or reversion prisms. Dove prisms can be thought of as right-angle prisms with the triangular apex removed, which reduce the weight of the prism and stray internal reflections. They introduce astigmatism when used with converging light, so we recommend using them with collimated light. Product Description Additionally, Dove prisms affect the polarization state of light transmitted through them. When light is incident on the longest face, the Dove prism acts as a retroreflector or a right-angle prism. The light exits parallel to the input light (independent of the incidence angle) and is inverted by 180°. In situations with limited space or where more convenient mounting options are needed, the Dove prism can replace a retroreflector or right-angle prism. Specifications: Material:H-K9L(Optical glass,UVFS) Dimension Tolerance:±0.1mm Angle Tolerance:90% Bevel: < 0.2mm×45° Coating : Custom Design Highly recommended Dove prisms from Yutai Optics: H-K9L(BK7) Dove Prisms, Fused silica Dove Prisms, Dove prisms with AR coating, Aluminized dove prisms.

Catalogs

No catalogs are available for this product.

See all of Changchun Yutai Optics Co., Ltd.‘s catalogs
