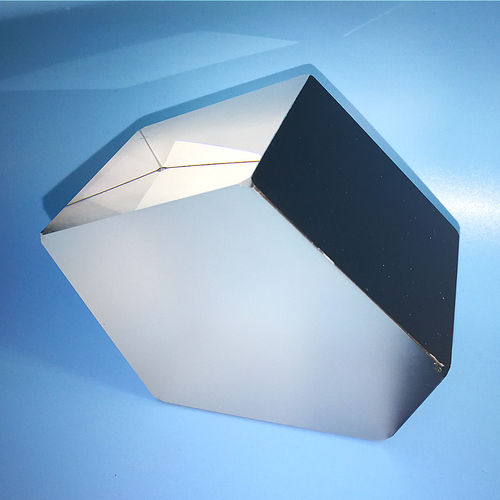

Glass pentaprism
fused silicalaser

glass pentaprism
glass pentaprism
glass pentaprism
glass pentaprism
Add to favorites
Compare this product


Characteristics

Material
glass, fused silica
Other characteristics
laser

Description

Penta Prisms Penta prism is a five sided prism used to deviate the input beam by 90° and will neither invert nor reverse the image. The two reflecting surfaces are coated with antireflective material to reduce the loss of light (through transmission) as the incident angle is less than the critical angle. It is widely used in laser level, alignment and optical tooling.These prisms deviate a beam through the same angle regardless of its orientation to the beam. This makes penta prisms valuable for applications requiring an exact 90° deviation without having to orient the prism precisely. The monolithic design of a penta prism also makes it inherently more stable than a system consisting of two mirrors. Product Description Specifications: Material:H-K9L(Optical glass,UVFS) Dimension Tolerance:±0.1mm Angle Tolerance:90% Bevel: < 0.2mm×45° Coating : Custom Design Highly recommended Penta Prism from Yutai Optics: H-K9L(BK7) Penta Prisms, UV Fused Silica Penta Prisms, Penta Prisms with AR and HR/Metallic coating, Protected Aluminum with black paint penta prisms, Penta Beamsplitters( glued by one right angle prism and one penta prism), Half Penta Prisms. Applications: Beam steering; Optical system alignment.

Catalogs

No catalogs are available for this product.

See all of Changchun Yutai Optics Co., Ltd.‘s catalogs
