Round optical window sapphirefused silicaBK7
Add to favorites
Compare this product
Characteristics
- Shape
- round
- Material
- sapphire, fused silica, BK7
Description

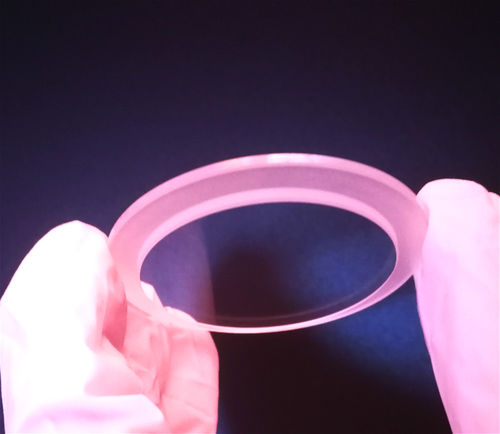

Step Glass
Stepped windows are used in a wide variety of applications where spectral isolation is required.
They are widely used in electro-optics, aerospace, bio-medical areas.We can make custom step windows according to customer's requirements.
The two round surfaces of the stepped windows will be polished, other surfaces only to be groud.
Product Description
Specifications:
Material:BK7,fused Silica,Sapphire
Diameter:1.5-500mm
Thickness Range:1-50mm
Diameter Tolerance:±0.1mm
Thickness Tolerance:±0.1mm
Parallelism<10 arc min
S/D:60-40
