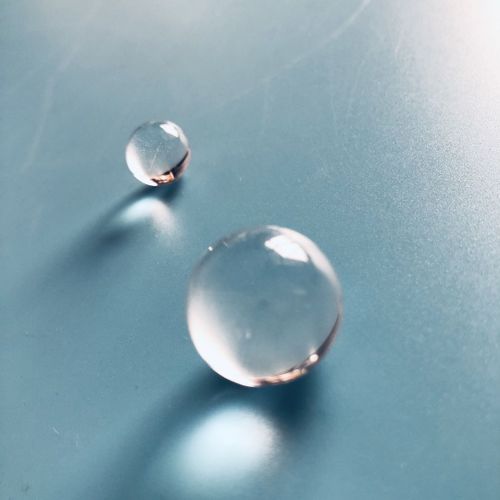

Ball lens element YT-278glassopticalfor endoscopes
Add to favorites
Compare this product
Characteristics
- Geometry/curvature
- ball
- Material
- glass
- Applications
- optical, for endoscopes
- Diameter
Min.: 0.3 mm
(0.01 in)Max.: 250 mm
(9.84 in)
Description
Warranty: 3 months
Customized support: OEM
Place of Origin: Jilin, China
Brand Name: YT
Model Number: YT-278
Use: Optical
Structure: Other
Shape: BALL
Substrate: Optical glass
Diameter: 0.3-250mm
Diameter Tolerance (μm): ±2.5
Index of Refraction nd: 1.589
Porosity (%): 0
Sphericity (μm): 0.64
Wavelength Range (nm): Custom
Surface quality: 60/40
Focal length: Custom Request
Coating: Uncoated
Ball Lens
Ball Lenses provide for a shorter back focal length, simplifying fiber coupling, due to the
high index of refraction. Ball lenses are manufactured from a single glass substrate and can
either focus or collimate light. Ball Lenses are ideal for endoscopy, bar code scanning, ball
pre-forms for aspheric lenses, and sensor applications.
