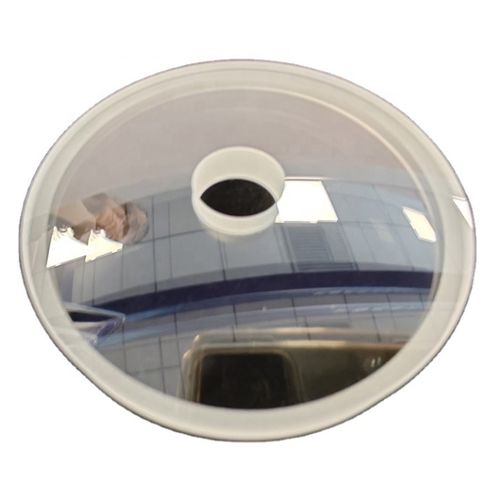

Plano-concave lens element

sphericalBK7

Warranty: 3 months Customized support: OEM Place of Origin: Jilin, China Brand Name: YT Model Number: YT-concave lens with hole Use: Optical Structure: Singlet Shape: Spherical Size: none Weight: 0.1 Product name: spherical concave lens with hole Material: K9 glass Diameter: 30mm 50mm 70mm etc. Focal length: as requirements Surface quality: 60/40 Flatness: L/2 Centration: 3 arc minutes Tolerance: +-0.1mm Chamfer: 0.25mm*45 degree Feature: make holes as request. Plano concave lens Plano-concave lenses have negative focal lengths and can be used to diverge collimated beams. In this case, the curved surface of the lens should face the source to minimize spherical aberration. In addition, they can be employed to offset the effects of spherical aberration caused by other lenses in an optical system. Changchun Yutai Optics Co., Ltd. can supply high quality plano concave lens in 1" 1.5" or 2" diameter as request. Also it is available to arrange hole, notch and cut as request.
