BK7 lens element YT-325laser
Add to favorites
Compare this product
Characteristics
- Material
- BK7
- Applications
- laser
- Diameter
Max.: 250 mm
(9.84 in)Min.: 1.5 mm
(0.06 in)
Description
Warranty: 3 months
Customized support: OEM
Place of Origin: Jilin, China
Brand Name: YT
Model Number: YT-325
Use: For laser machine
Structure: Other
Shape: PLANO
Material: BK7 H-K9L
Diameter: 1.5-250mm
Thickness Range: 1-50mm
Diameter Tolerance: ±0.1mm
Thickness Tolerance: ±0.1mm
Parallelism: 95%
Surface quality: 60/40
Application: For laser machine
Coating: No

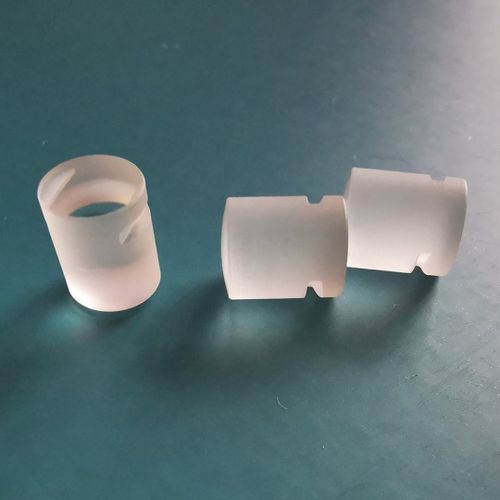

Grooved Window Lens
Yutai Optical glass grooved lens is same function withe singlet plan convex lens.But it has two grooves near the flat surface which will be let the lens to installed more easy.
Also we can supply the windows, prisms,mirror etc. with grooves as requirements.
