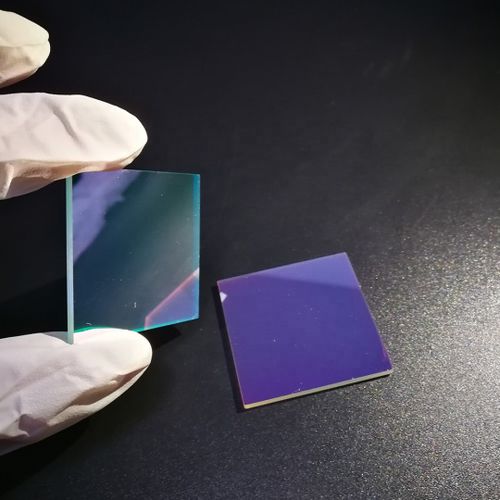

Band-pass optical filter - Changchun Yutai Optics Co., Ltd. - infrared / glass
Band-pass optical filter - Changchun Yutai Optics Co., Ltd. - infrared / glass
Band-pass optical filter - Changchun Yutai Optics Co., Ltd. - infrared / glass - image - 2
Band-pass optical filter - Changchun Yutai Optics Co., Ltd. - infrared / glass - image - 3
Band-pass optical filter - Changchun Yutai Optics Co., Ltd. - infrared / glass - image - 4
Band-pass optical filter - Changchun Yutai Optics Co., Ltd. - infrared / glass - image - 5
Band-pass optical filter - Changchun Yutai Optics Co., Ltd. - infrared / glass - image - 6
Add to favorites
Compare this product


Characteristics

Type of optics
infrared, band-pass
Material
glass

Description

Place of Origin: Jilin, China Brand Name: YT Model Number: YT107 Product name: BandpassFilter Material: optical glass Dimension: 5-40mm Tolerance: +-0.1mm Surface Quality: 60/40 Cwl: 850nm-950nm Transmittance: >90% or other Fwhm: > 15nm Blocking: 200-1100nm Use: optical Infrared Filter-1 The infrared wavelength from 850nm to 950nm. We can supply the infrared optical filter with good transmittance in the infrared wavelength and blocking other wavelength light. Bandpass Filter-2 Bandpass interference Filters are designed to transmit a portion of the spectrum, while rejecting all other wavelengths. Notch Filters reject a portion of the spectrum, while transmitting all other wavelengths. Edge or Dichroic Filters transmit wavelengths that are either greater than the cut-on or shorter than the cut-off wavelengths. Color Substrate Filters utilize the material's inherent adsorption and transmission properties. while ND Filters evenly reduce transmission across a portion of the spectrum. Changchun Yutai Optics Co., Ltd. can supply and customize the filter according to your requirements.
