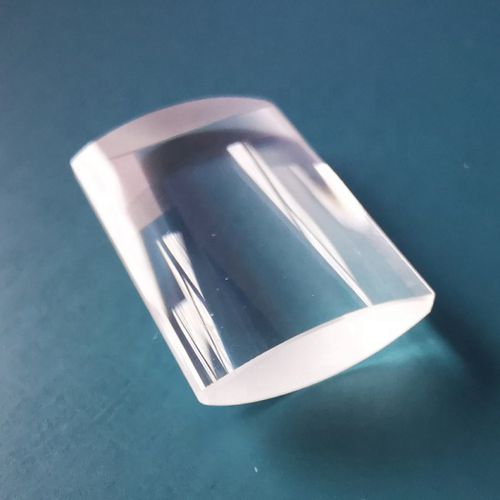

Bi-convex lens element YT-CY015

cylindricalglassfused silica

Warranty: 3 months Customized support: OEM Place of Origin: Jilin, China Brand Name: YT Model Number: YT-CY015 Use: Optical Structure: Singlet Shape: cylindrical Size: none, As design Weight: 0.2 Product name: Biconvex cylindrical lens Material: Optical glass Focal length: as request Surface quality: 40/20 20/10 Flatness: L/4 Centration: 3 arc minutes;30 arcsec. Tolerance: +-0.1mm Chamfer: 0.25mm*45 degree Coating: as request Changchun Yutai Optics Co., Ltd. can customized various shape cylindrical lens according to requirements: 1.Materials of the lens can be K9 glass, fused silica,ZF3,F4 and so on( CDGM glass);(Also available for infrared material.) 2.Diameter of the lens can be from 0.5mm to 400mm. 3.Surface quality can be 40/20,60/40 and flatness in L/4,L/2 etc. 4.It is available for AR coating, BBAR coating, BBR coating, hydrophobic coating and so on. 5.There are also many cylindrical lenses in the stock to be test as sample. 6.It is also available to arrange the holes, notch or cut flat as request on the lenses
