Singlet lens element glassinfraredoptical
Add to favorites
Compare this product
Characteristics
- Geometry/curvature
- singlet
- Material
- glass
- Optical characteristics
- infrared
- Applications
- optical
Description
Warranty: 3 months
Customized support: OEM
Place of Origin: Jilin, China
Brand Name: YT
Model Number: YT-reticle lens
Use: Optical
Structure: Singlet
Shape: PLANO
Size: none
Weight: 0.05
Product name: optical coating lens
Material: Optical glass
Diameter: 25.4mm, 12.7mm, 50mm etc.
Thickness: 0.5mm, 1mm, 2mm,3mm, 5mm etc.
Surface quality: 60-40
Flatness: 1L
Centration: 3 ARCMIN
Tolerance: +-0.1mm
Chamfer: AROUND 0.25mm*45 degree
Coating: Chromium, ZnO

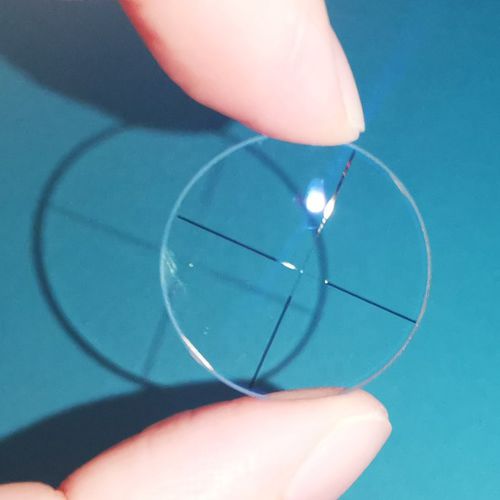

Changchun Yutai Optics Co., Ltd. can supply reticle lens as request
1.Materials: optical glass.
2.Dimension can be customized as request.
3.Surface quality can be 40/20,60/40 and flatness in L/2,1L etc.
4.It is available for Chromium coating, ZnS coating etc.
