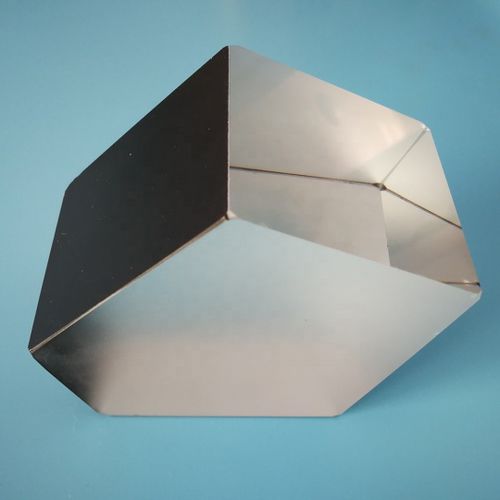

Fused silica pentaprism YT-PENTABK7
Add to favorites
Compare this product
Characteristics
- Material
- fused silica, BK7
Description
Warranty: 3 Months
Customized support: OEM
Place of Origin: Jilin, China
Brand Name: YT
Model Number: YT-PENTA
Material: k9/fused silica, bk7/fused silica
Surface Quality: 40/20
Dimension Tolerance: +-0.1MM
Angle Tolerance: <30'
Flatness: l/4
Product name: Al Coating With Black Overcoat Optical Glass Penta Prism
Surface quality: 40-20
Surface flatness: Lambda/8~ Lambda/2
Tolerance: +/- 0.1mm
Coating: black painted and reflective coating
DIMENSION: As request
Clear Aperture: 95%-99%
Keyword: penta prism
Chamfer: protective bevel
