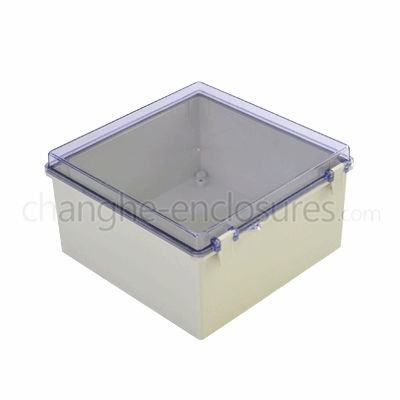

Controller enclosure 20C-8-1wall-mountrectangularABS
Add to favorites
Compare this product
Characteristics
- Construction
- wall-mount
- Configuration
- rectangular
- Material
- ABS, PC
- Application
- for controllers
- Protection level
- standard, halogen-free, fully-insulated, IP65
- Other characteristics
- custom, with transparent cover, with interlock system, protection
- Width
330 mm
(13 in)- Height
180 mm
(7.1 in)
Description
Internal size: 310mm x310mm x170mm (LxWxH)
Wall-mounting size: 280mm x325mm
Mounting plate size: 280mm x 280mm
Hinged cover
Easy wall mounting
There are no holes in standard enclosures. If holes or cutouts are required, all CHANGHE enclosures can be customized to meet your specific requirements.
Ingress protection - IP65 IEC60529:2001
Impact protection - IK07 IEC62262:2002
Temperature range (short term) - -40℃~ 80℃ IEC60068:1997
Temperature range (long term) - -20℃~ 60℃ IEC60068:1997
Electrical insulation - Total insulation
Flammability Rating - PC:UL94_5VA ABS:UL94HB UL94
Non-toxicity - Halogen Free
RoHS - RoHS compliance
When a standard enclosure isn’t exactly what you need, CHANGHE is able to offer 'one stop solution' for the ideal enclosure modification:
1. Mold Fabrication
2. Cutouts
3. Custom Color
4. Silk-screen Printing
5. Special Shielding Material
6. Fire-retardant Materials
