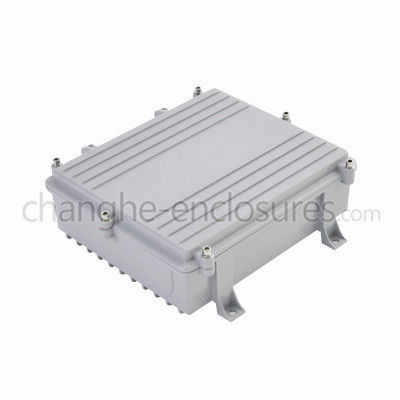

Controller enclosure 11B-28wall-mountrectangularcast aluminum
Add to favorites
Compare this product
Characteristics
- Construction
- wall-mount
- Configuration
- rectangular
- Material
- cast aluminum
- Application
- industrial, electronic equipment, indoor, outdoor, for controllers
- Protection level
- IEC, dust-proof, waterproof, standard, halogen-free, chemical-resistant, corrosion-resistant, flameproof, IP65, EMC, EMC-shielded
- Other characteristics
- custom, sealed, protection
- Width
291 mm
(11.5 in)- Height
107 mm
(4.2 in)
Description
Internal size: 275mm x230mm x82mm (LxWxH)
Wall-mounting size: 273mm x180mm
Mounting plate size: 250mm x198mm
IP 65 watertight and dust-proof
Can be used at a wide range of operating temperatures:-40 to 120 ℃
Excellent EMC performance
Powder coatings offer quality corrosive resistance
Ingress protection - IP65 IEC60529:2001
Impact protection - IK08 IEC62262:200
Temperature range (short term) - -40℃ ~ 120℃ IEC60068:1997
Temperature range (long term) - -20℃ ~ 80℃ IEC60068:1997
Chemical Resistance - Good
Flammability rating - Highly flame resistant
Non-toxicity - Halogen Free
RoHS - RoHS compliance
When a standard enclosure isn’t exactly what you need, CHANGHE is able to offer 'one stop solution' for the ideal enclosure modification:
1. Mold Fabrication
2. Cutouts
3. Custom Color
4. Silk-screen Printing
5. Special Shielding Material
6. Fire-retardant Materials
