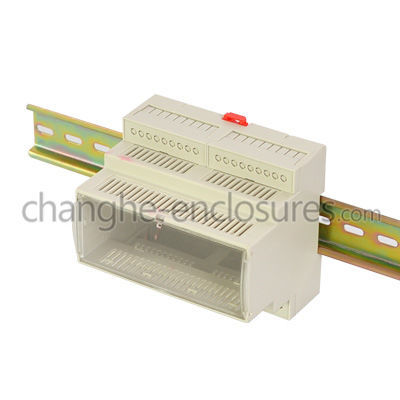

DIN rail enclosure 14-55modularPOMABS
Add to favorites
Compare this product
Characteristics
- Construction
- for DIN rail
- Configuration
- modular
- Material
- ABS, PC, POM
- Application
- electronic equipment, terminal, PLC
- Protection level
- standard
- Other characteristics
- custom
- Width
91 mm
(3.6 in)- Height
75 mm
(3 in)
Description
Widely applied in modular PLC, controller unit, modular distributor
Easy and fast locking on din rail
Pre-installed mounting clip (POM)
Electrically insulation
Good heat dissipation
Custom color and material
Temperature range (short term) - -40℃~ 80℃ IEC60068:1997
Temperature range (long term) - -20℃~ 60℃ IEC60068:1997
Electrical insulation - Total insulation
Flammability rating - PC:UL94_5VA ABS:UL94HB UL94
Non-toxicity - Halogen Free
Terminal blocks - 250V/10A
Mounting method - 35mm DIN rail
hen a standard enclosure isn’t exactly what you need, CHANGHE is able to offer 'one stop solution' for the ideal enclosure modification:
1. Mold Fabrication
2. Cutouts
3. Custom Color
4. Silk-screen Printing
5. Special Shielding Material
6. Fire-retardant Materials
