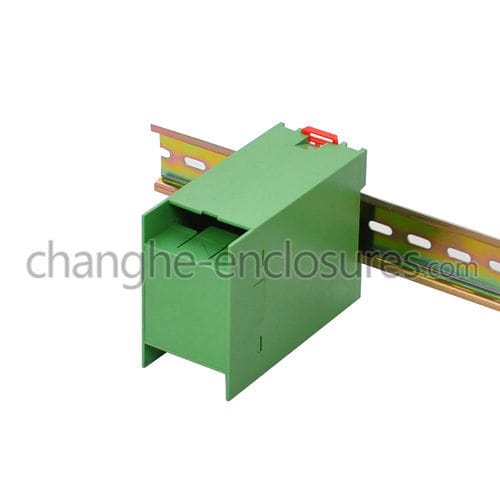

DIN rail enclosure 15-5 modularPAABS
Add to favorites
Compare this product
Characteristics
- Construction
- for DIN rail
- Configuration
- modular
- Material
- ABS, PA
- Application
- terminal
- Protection level
- standard, IP40, IP20
- Other characteristics
- custom
- Width
75 mm
(3 in)- Height
45 mm
(1.8 in)
Description
Terminal blocks: 8 x 2 Pin (not included in standard components)
Screws: M3
Vertical mounting of PCB
Fit for 35mm mounting rail
Standard color: off-white/green
Temperature range (short term) - -40℃~ 80℃ IEC60068:1997
Temperature range (long term) - -20℃~ 60℃ IEC60068:1997
Electrical insulation - Total insulation
Flammability rating - PA:UL94_5VA ABS:UL94HB UL94
Non-toxicity - Halogen Free
Terminal blocks - 250V/6A
Mounting method - 35mm DIN rail
When a standard enclosure isn’t exactly what you need, CHANGHE is able to offer 'one stop solution' for the ideal enclosure modification:
1. Mold Fabrication
2. Cutouts
3. Custom Color
4. Silk-screen Printing
5. Special Shielding Material
6. Fire-retardant Materials
